Description
1. Product Overview

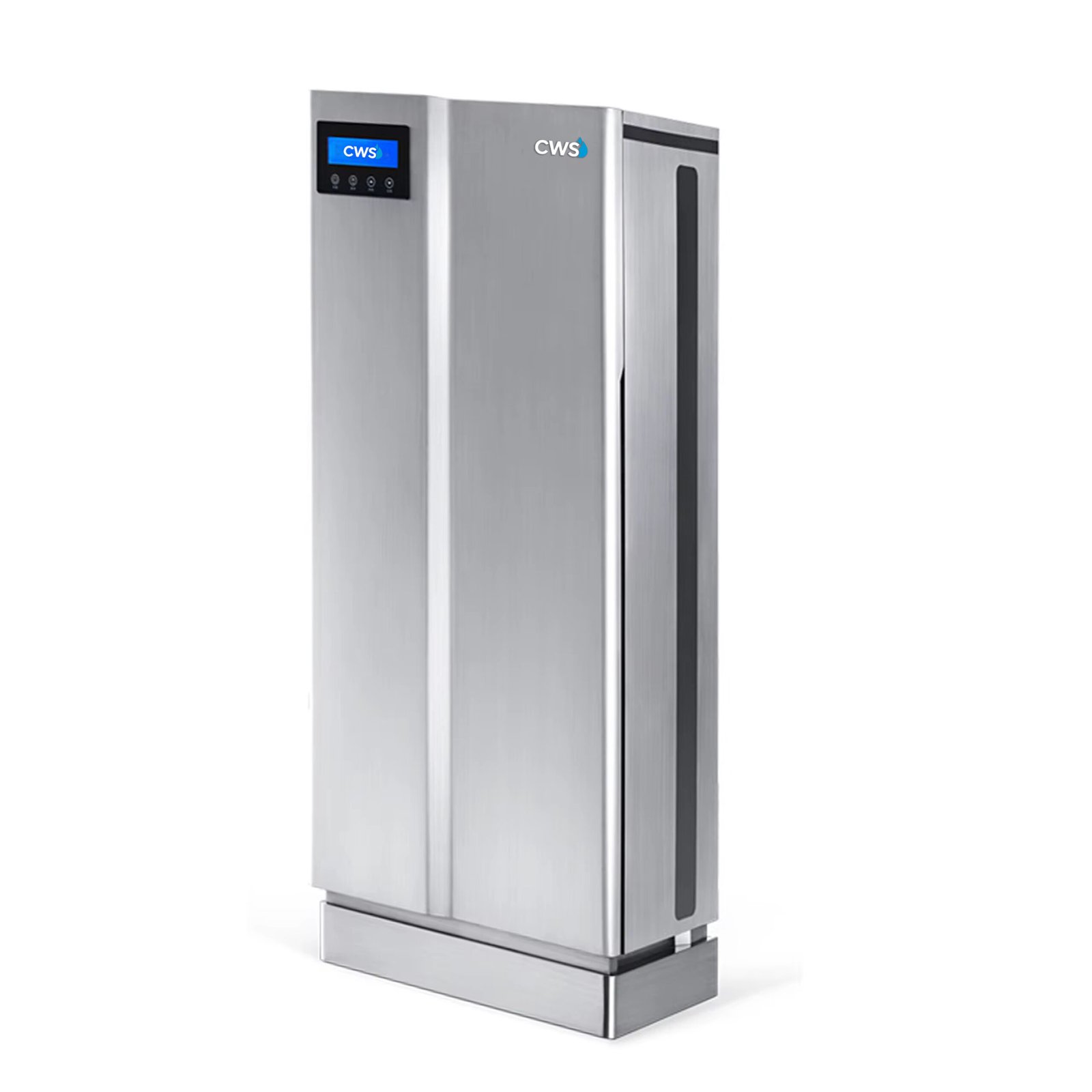

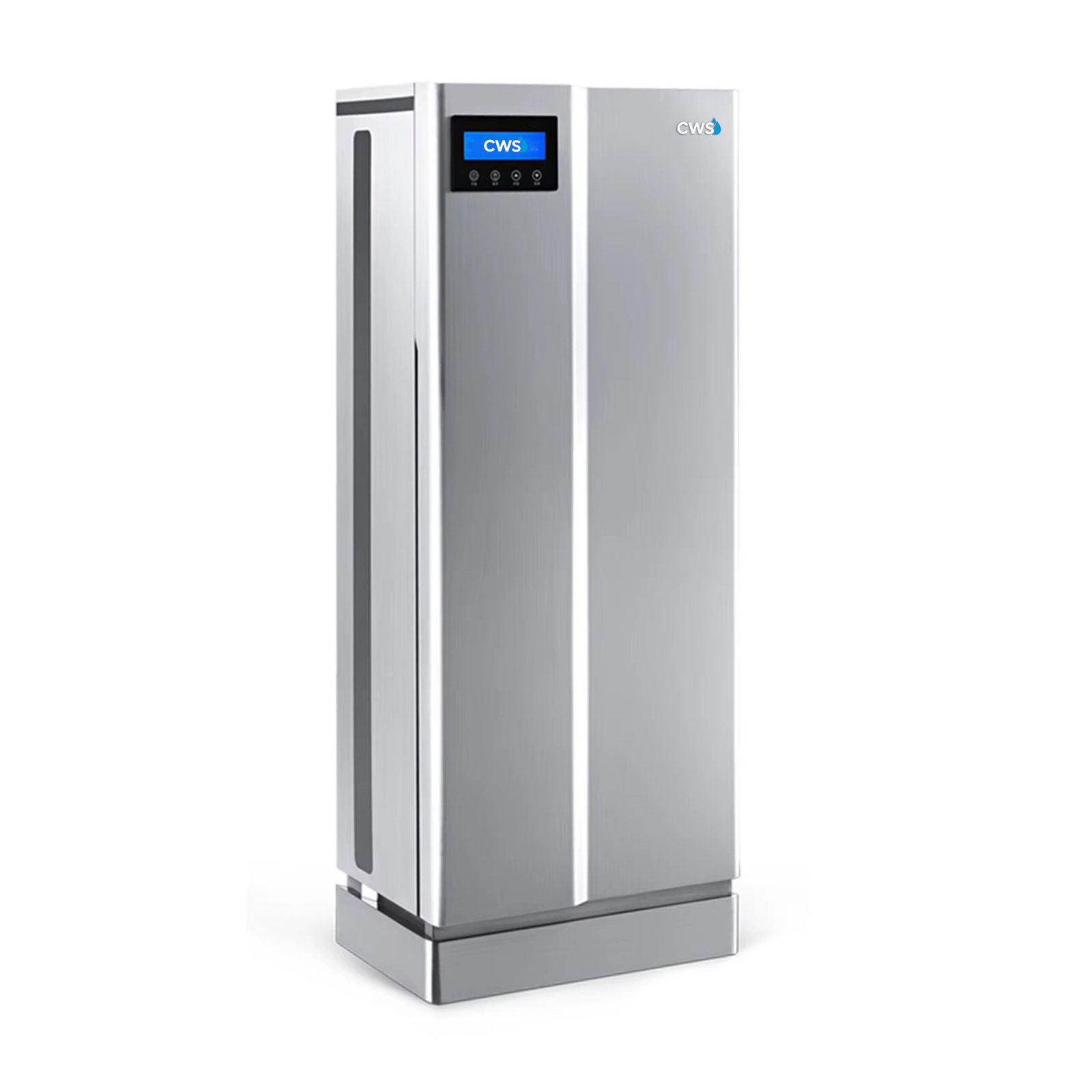

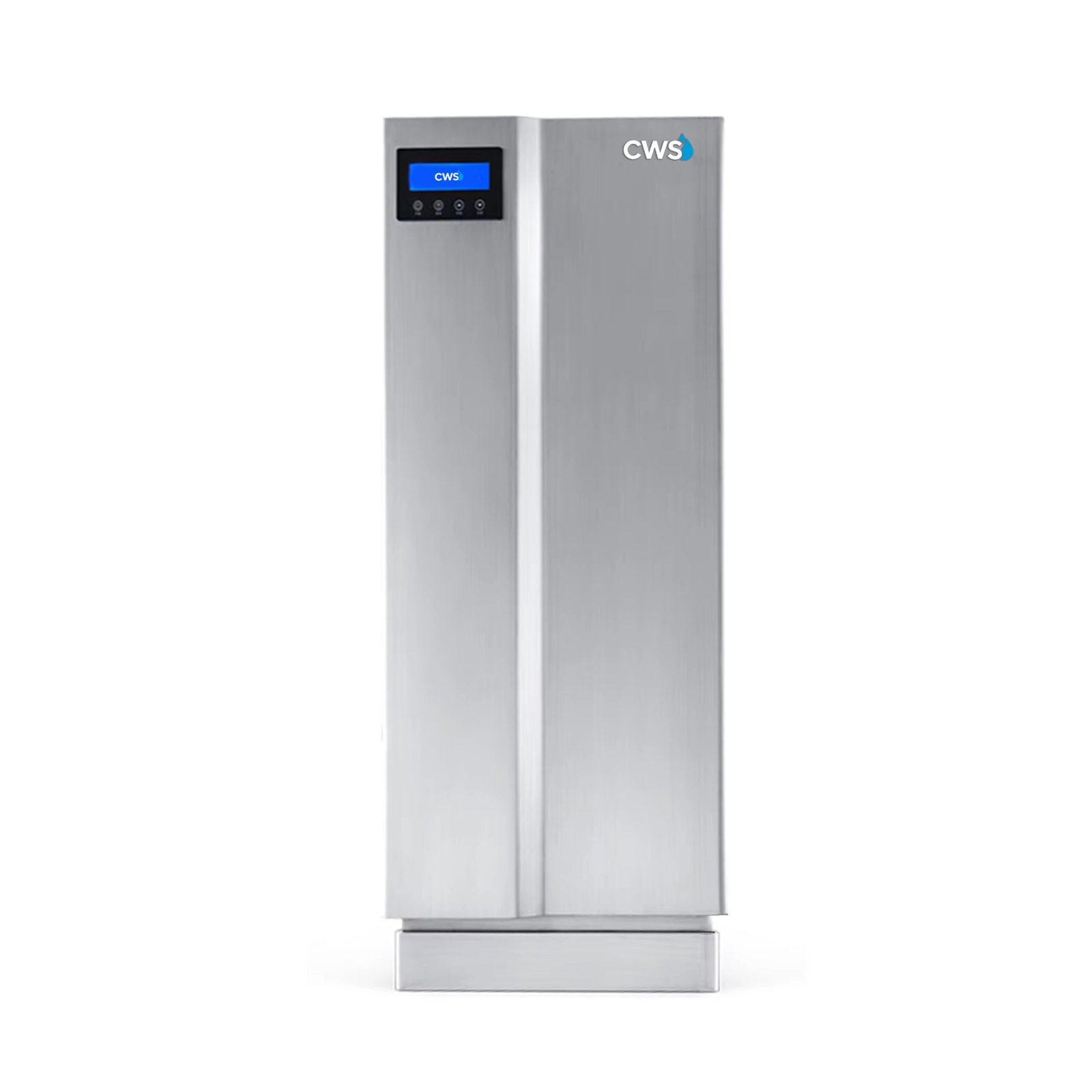

The CWS U12 provides 8,000 L/h of ultra-clean water with 0.01 μm PAN ultrafiltration. Perfect for large-scale commercial operations, hotels, hospitals, and corporate facilities, this system combines high output with low-maintenance auto flush technology.
2. Core Technologies
- PAN Ultrafiltration Membrane (0.01 μm)
- Automatic Flush System
- Stainless Steel Faucet
3. Technical Specifications
| Parameter | Details |
| Model | U12 |
| Filtration Accuracy | 0.01 μm |
| Pure Water Flow | 8,000 L/h |
| Inlet / Outlet | 1″ |
| Water Temperature | 5–38℃ |
| Working Pressure | 0.1–0.4 MPa |
| Filtration Technology | PAN Ultrafiltration |
| Faucet | Stainless Steel |
| Material | SUS 304 Housing |
| Flush | Automatic |
| Dimensions | 660 × 449 × 1491 mm |
| Packing Size | 790 × 580 × 1560 mm |
| G.W | 143 kg |
4. Applications
- Hotels, large restaurants, and catering
- Hospitals, clinics, laboratories
- Large offices and corporate facilities
5. System Features
- High-capacity output up to 8,000 L/h
- Auto flush for minimal maintenance
- Durable, professional-grade stainless steel construction
6. Maintenance Schedule
| Component | Interval |
| Pre-Filter | 6–12 months |
| Membrane | 24–36 months |
| Flush System | Automatic |
7. Advantages
- Ultra-high flow for commercial or high-demand residential use
- Hygienic, durable SUS 304 stainless steel housing
- Consistent, reliable water quality
