Description
1. Product Overview

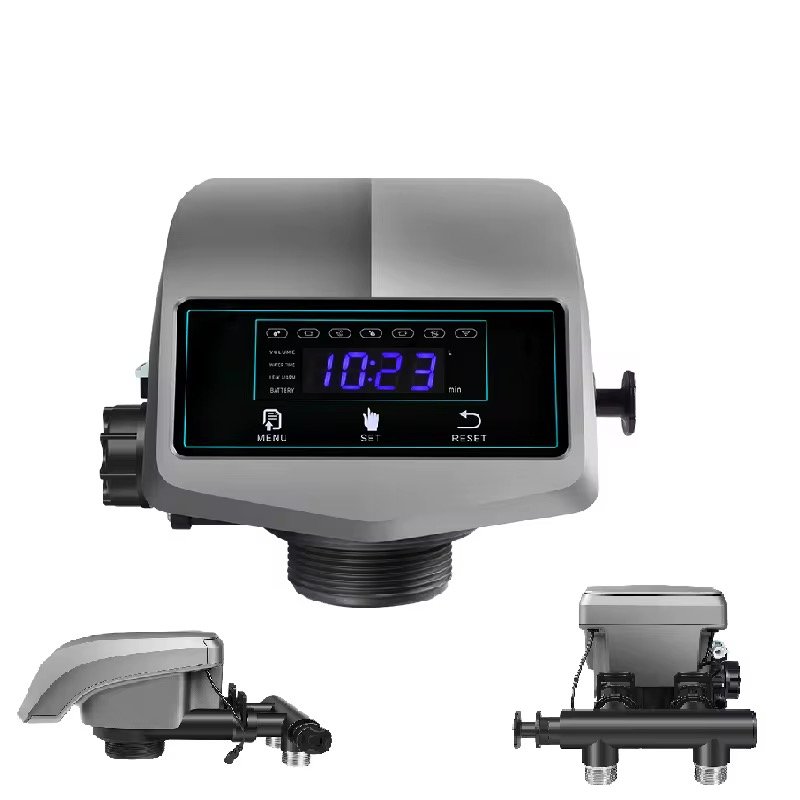

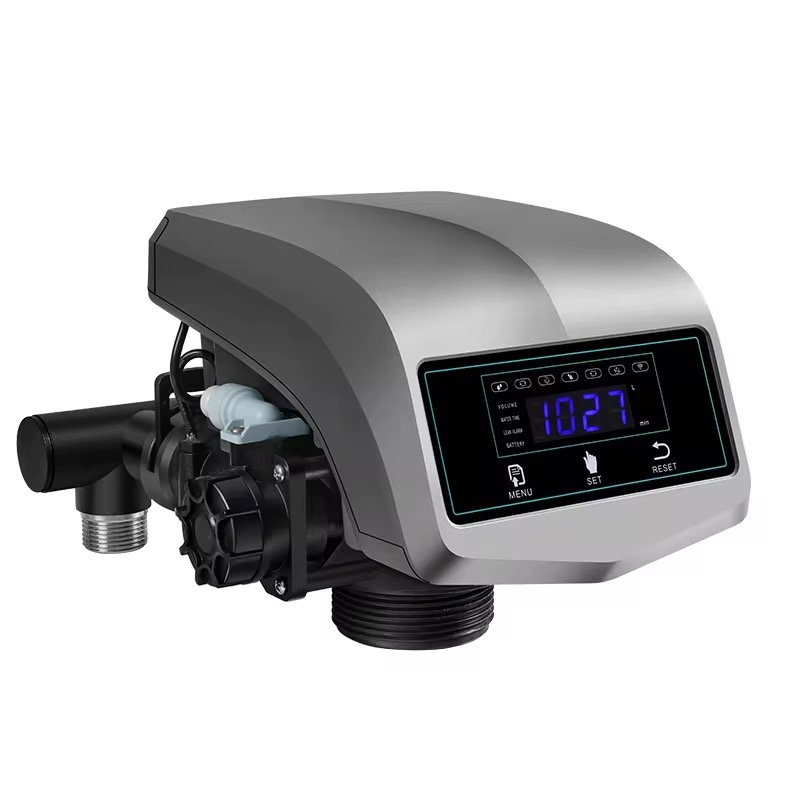

The CWS P-EV6 / EV8 Water Softener Control Valve is an intelligent, high-performance control system designed for commercial and industrial water softening applications.
Featuring automatic regeneration, dual monitoring, and remote WiFi control, this valve ensures reliable, efficient, and safe operation of water softener systems for high-demand facilities.
The valve is compatible with municipal tap water feed and integrates seamlessly with central water softening systems, delivering softened water for factories, hotels, hospitals, and other commercial installations.
2. Core Technology & Features
Automatic Regeneration
- Flow-type and time-type dual control ensures timely regeneration
- Optional counter-current or downstream regeneration modes
- Supports dry or wet salt regeneration
Leakage Monitoring
- Dual monitoring of water consumption and time
- Optional external leak sensor probe for real-time detection
- Automatically shuts off water supply in case of leaks
Intelligent Control System
- WiFi-enabled for remote monitoring and control via mobile app
- Wireless remote valve control (open/close) up to 10–30 meters
- Supports one main device with 7 sensor probes simultaneously
Power & Safety
- Dual power supply: built-in lithium battery with automatic switch
- Automatic charge/discharge protection
- Power failure mode maintains leak prevention
3. Commercial Applications
- Hotels, resorts, and commercial buildings
- Hospitals, healthcare facilities, and laboratories
- Manufacturing plants and industrial water treatment
- Food & beverage processing
- Municipal and public water softening systems
4. Technical Specifications
| Parameter | EV6 | EV8 |
| Product Name | Water Softener Control Valve | Water Softener Control Valve |
| Model No. | IMT-P-EV6 | IMT-P-EV8 |
| Product Size (L×W×T) | 337 × 183 × 251 mm | 337 × 183 × 251 mm |
| Colour | Gray | Gray |
| Power Supply | 100–240V ~ 50/60Hz | 100–240V ~ 50/60Hz |
| Feed Water Source | Municipal tap water | Municipal tap water |
| Pure Water Flow | 1 Ton/h | 3 Ton/h |
| Working Pressure | 0.1 – 0.4 MPa (14.5–58 psi) | 0.1 – 0.4 MPa (14.5–58 psi) |
| Inlet/Outlet Size | 3/4″ | 1″ |
| Flush Method | Auto Flush | Auto Flush |
| Filtration Technique | Resin Ion Exchange | Resin Ion Exchange |
5. Performance & Operational Advantages
- Ensures consistent softened water supply for high-demand applications
- Reduces maintenance costs with automatic monitoring and leak detection
- Optimizes salt usage with intelligent regeneration control
- Supports remote diagnostics and operation, improving service efficiency
- Maintains water quality and system reliability
6. Installation & Integration
- Inline installation for commercial water softening systems
- Compatible with multiple softener tank configurations
- Easy integration with existing pipelines and monitoring systems
- Optional wireless sensors for enhanced leak detection
7. Maintenance & Service
- Minimal maintenance due to automated regeneration and leak monitoring
- Lithium battery ensures continuous operation during power failures
- Visual and app-based alerts for system status and maintenance requirements
8. Certifications & Compliance
- CE Certification
- RoHS Compliance
- Food-grade water system components
- Meets EU & UK industrial water safety standards
9. Package Contents
- CWS IMT-P-EV6 / EV8 Water Softener Control Valve
- Installation kit and fittings
- User manual and technical documentation
- Warranty and service guide
10. Conclusion
The CWS P-EV6 / EV8 Water Softener Control Valve delivers intelligent, reliable, and efficient control for commercial and industrial water softening systems.
With advanced features including automatic regeneration, WiFi remote control, dual leak monitoring, and dual power supply, the valve ensures optimized water treatment, reduced operational costs, and enhanced system safety across all high-demand applications.
